Do you know the design and production process of door covers?

In wooden doors, we often focus on the door leaf, thinking that its appearance changes determine the overall product effect. In fact, the design and manufacturing of door frames deserve more of our attention! The same wooden door, matched with different door frames, has very obvious effects.

The door frame and door leaf are equally important, and even determine the overall quality of the wooden door. The door frame is an important part of the overall wooden door, including the door frame plate and the door frame line. The door cover can not only meet the function of the door, but also has good decorative properties.

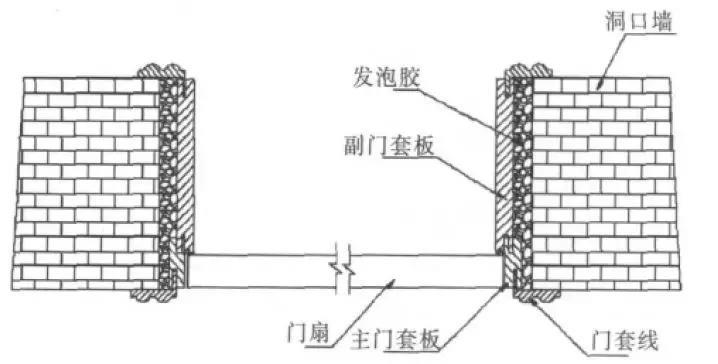

Door pocket installation diagram⬇

Door cover structure diagram ⬇

Among them, the door panel is also called the door frame, which determines the stress level of the door panel. door coverThe line is also called the facade line or the mouth line. It is often thought that it only has a decorative function, but in fact it also has a regulatory function.

1. The decorative role of the door casing line

The external curve shape of the door casing line plays a decorative role. A good door casing line shape can Improve the grade and design of wooden set doors.

Still taking the white wooden door as an example, the curved shape of the wooden cover plays an important role in the overall style of the wooden door. Here are some door cover lines. Shape design, share it with you

2. The regulating effect of door cover lines

Door cover lines can not only play a decorative role, Another biggest feature is that it has a telescopic adjustment function relative to the wall, which can adapt to thickness deviations in the wall caused by construction.

The door cover wire is inserted into the slot of the door cover plate. The insertion depth has a certain degree of adjustment. When the wall is thin, the plug-in board can be inserted inward. , if the wall is thick, pull out a These can ensure that the door pocket line is always close to the wall. Generally, the adjustable range of the door pocket is between 5mm and 15mm, which is enough to adapt to changes in wall thickness.

The door pocket can adapt to changes in wall thickness. Adjustment function diagram⬇

To summarize briefly, the door cover line is highly decorative, and its design and manufacturing play an important role in the shape of the overall wooden door.
