Recently, some owners have inquired about the design of courtyard doors, guardrails, and stair handrails. They are always afraid that they will not be able to measure accurately and will not be able to install them. However, they have to pay for the measurements by the manufacturer, which makes them worry about gains and losses. In fact, this is because you are not familiar with the method of measuring the size of door openings. Of course, if you have the budget, you can certainly arrange for a manufacturer to come and measure. With these questions in mind, I will solve the measurement problem for you!

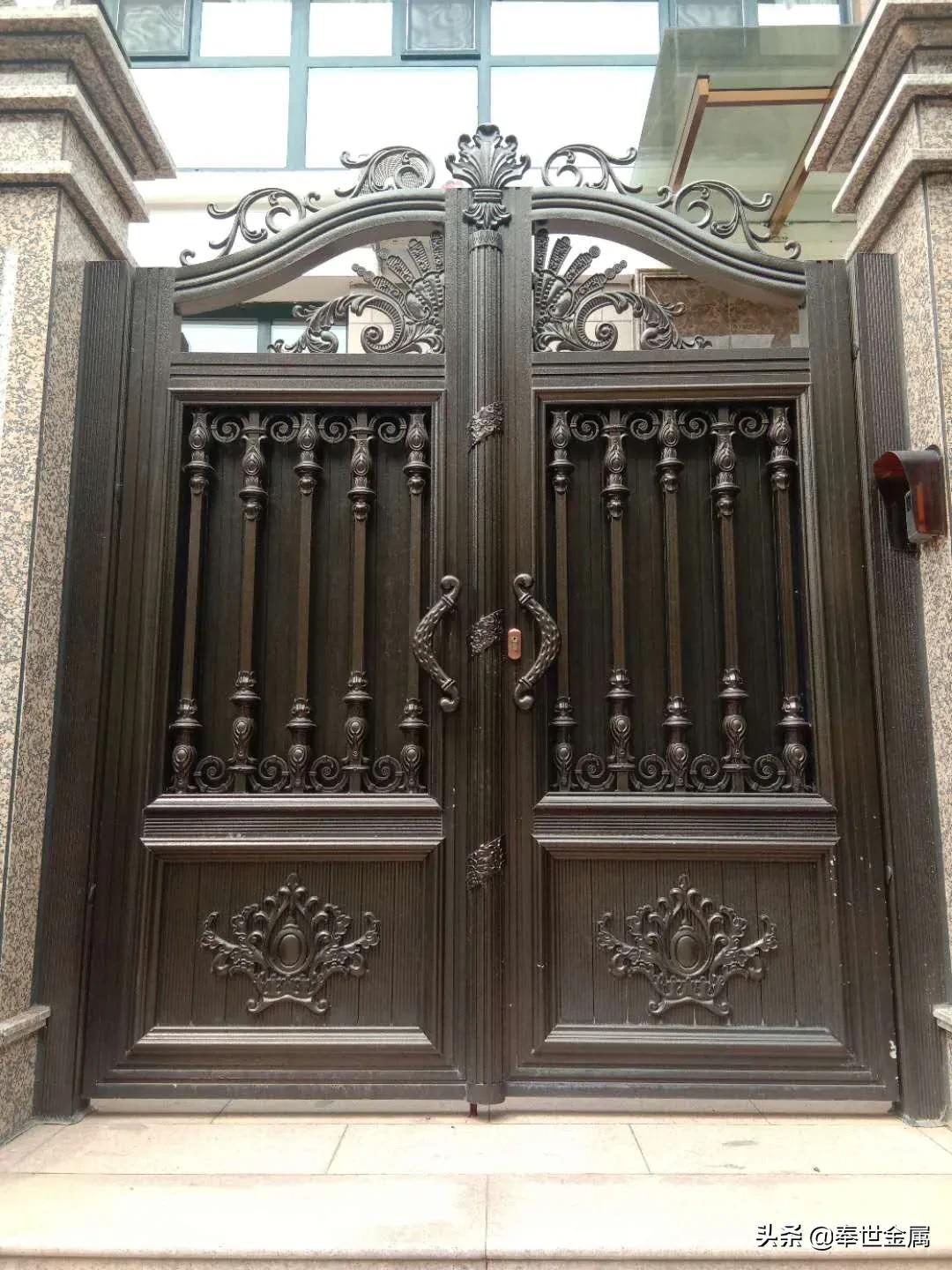

How to measure the entrance of the courtyard door

Later today I saw a message from a customer on Douyin, saying that he wanted to install a courtyard door in his home, so he read me photographed The video said it was very professional. I wanted to know more about issues related to patio doors. After communication, I found out that the customer had three different types of products to make: patio doors, guardrails, and stair handrails. They were also given drawings. After reading them, I was pretty much satisfied. I understand, this customer still has a certain method!

No further talk, there are 3 parts that need to be measured when measuring the courtyard door!

1. Door opening width
2. Height below the hat brim from the ground
3. Protruding length of the hat brim

Door opening width The measurement needs to be measured in three places, namely the width of the high, middle and low parts. If it is a mid-mounted door, you need to take the smaller value. For a rear-mounted door, just choose the average value or the middle value.

There is a protruding shape below the hat brim, that is, the upper part of the stone pillar. We only need to measure the height from the bottom of the hat brim to the ground. Of course, if the ground is not flat, we need to find the horizontal point on the ground in advance and then confirm this value. Since most of the ground has already been prepared, there is no need to consider this issue!

BrimThe protruding position belongs to the height of the patio door and needs to be considered for blocking. Especially when the brim protrudes a lot, it is necessary to measure it to prepare the patio door to avoid blocking the door leaf.

Guardrail measurement precautions

Most guardrails are installed on a step surface with a height of about 30 cm, so you need to measure the size Taking into account issues such as corners, step width, and reasonable placement of columns, of course these dimensions need to be measured.

Corners

Common corners are mostly at right angles. Generally, columns are designed at the corners, so the measurement at the corners must be determined based on the width of the countertop and the size of the columns. Just measure the length of both sides of the corner and the width of the countertop, and the excess dimensions can be deducted when designing.

Step width

The step width is the specific width of the table. Generally, the guardrail is installed in the center of the table, so try to measure the center position when measuring. After reaching the corner, you can refer to the measurement method above.

Rules for placing columns

The common specifications of columns are 8 cm, 10 cm, and 12 cm square aluminum alloy pipes. Of course, the wall thickness varies greatly. This depends on the specific situation. Generally, the position of the column is Of course, two columns can be placed in the middle of 3 meters or 5 meters. It should be noted that the placement of the columns is consistent with the overall size of the guardrail. That is to say, if the columns are placed between 3 meters, the subsequent dimensions should be between this value. , there should not be much disparity, otherwise the guardrail as a whole will look inconsistent in length.

How to measure stair handrails more accurately

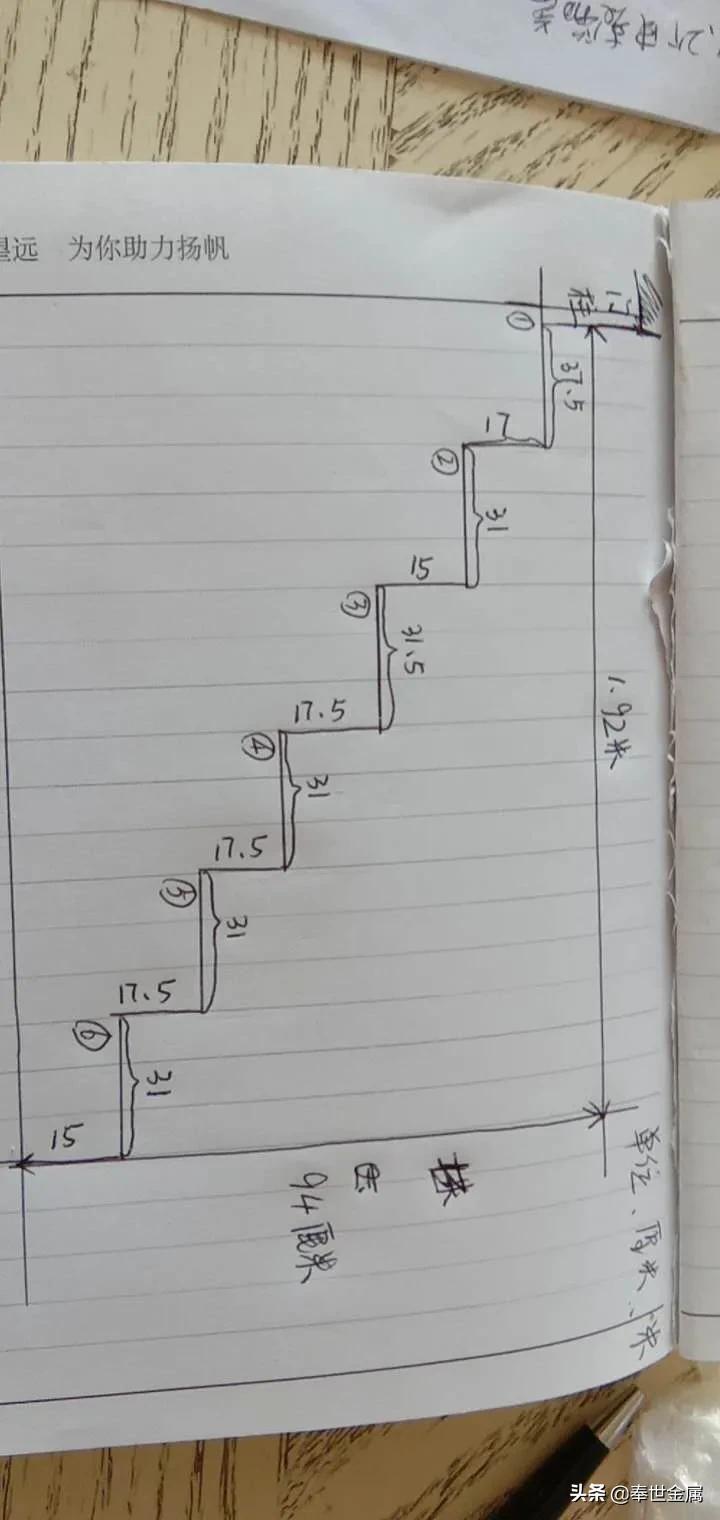

Stair handrails are divided into slope rows and rotating rows. Of course, rotating stair handrails need to be set out for measurement, which is not something ordinary owners can solve. Here is the key point. The measurement method of downslope stair handrails is generally based on the width and height of the stair steps, and then drawn in proportion to the specific quantities on the sketch, so that the processing angle of the stair handrails can be found, thereby facilitating the stone arch bridge.

Another measurement method is to use a level to calculate the hypotenuse of the right triangle through the specific value perpendicular to the horizontal and the Pythagorean theorem. This method can also be achieved, but What needs to be paid attention to is the location of both ends of the steps. You can do it wherever you need it. It can be accurate, but the other side is the corner of the handrail, that is, the size of the handrail installation edge is the size of the corner. This needs to be determined based on the on-site conditions.

How to organize these data in the courtyard door design

Through these detailed basic data, manufacturers will design based on these data and be able to Many details are avoided, so if the size measurement is accurate, the design drawings will be relatively accurate. Many owners spend more money or worry about the source of their poor measurement because they do not master the method of measuring size.

After seeing these data, the plan designed can reveal the overall effect of the gate. The proportions can be adjusted in appearance and size, so the courtyard door design depends on the measured values ​​

Why is the courtyard door design important?

The design can take into consideration the concerns of both parties. Problems can be agreed upon graphically, and the design can also avoid some problems that are easily overlooked. Although the design can also make the appearance of the courtyard door beautiful, of course the design can determine the size of the Feng Shui.

In short, the design of the courtyard door is important, but without accurate size measurement, it is just a matter of paper. In order to avoid more problems. If the problem arises, let’s learn how to measure the size!

General There are various knotting methods, but the specific operation should be based on local conditions. If the size cannot be guaranteed, then let professionals do the professional work. Of course, you will not only save money if you know this method! Cost, and can be matched with more beautiful patio door styles based on the concept of size
