5 checks before installation:

1. Check whether the middle door is closed smoothly and without protrusions;

2. Check whether the manual opening and closing of the middle door is smooth;

3. Check whether there is a fault light on the instrument;

4. Check the center door and interior panels for scratches;

5. Check whether the glass lift, sound horn, and central locking are normal.

Precautions before installation

1. Be sure to fix the motor and install the lock. Check whether the hole will rub against the pull wire. Stick it on the iron hole. Protective film to prevent the pull wire from rubbing against the iron sheet;

2. After everything is installed, push and pull the lower door back and forth with your hands to see if the lower door is smooth. Then spray some lubricating oil on the track. The track is more lubricated, and finally the power is connected for testing. If the manual push and pull is not smooth, the test cannot be plugged in;

3. Testing before installation is easy, which will affect product quality;

Beijing M7 accessories list

1. Remove the original rear trim panel

2. Remove the original car screws

3. Remove the original car seat belt

4. Remove the original rear trim panel and keep the screws inside the body

5. Rear panel screw holes

6. Remove the original car positioning and make holes

7. Rear silk opening

Opening effect

8. Front wire outlet installation position

9. Fixed position of rear wire outlet

10. Installation effect of drive motor

Ground wire installation location

11. Use a jack to support and remove the middle pulley (screw positioning is required before disassembly)

12. Remove the pulley and install our fixing piece

13. Remove the center door trim

14. Remove the original interior and exterior handles of the car and install the micro switch

15. Install our small white box

16. Install the central micro switch

17. Replace the original car rear lock and loosen the screws

18. Install our rear lock

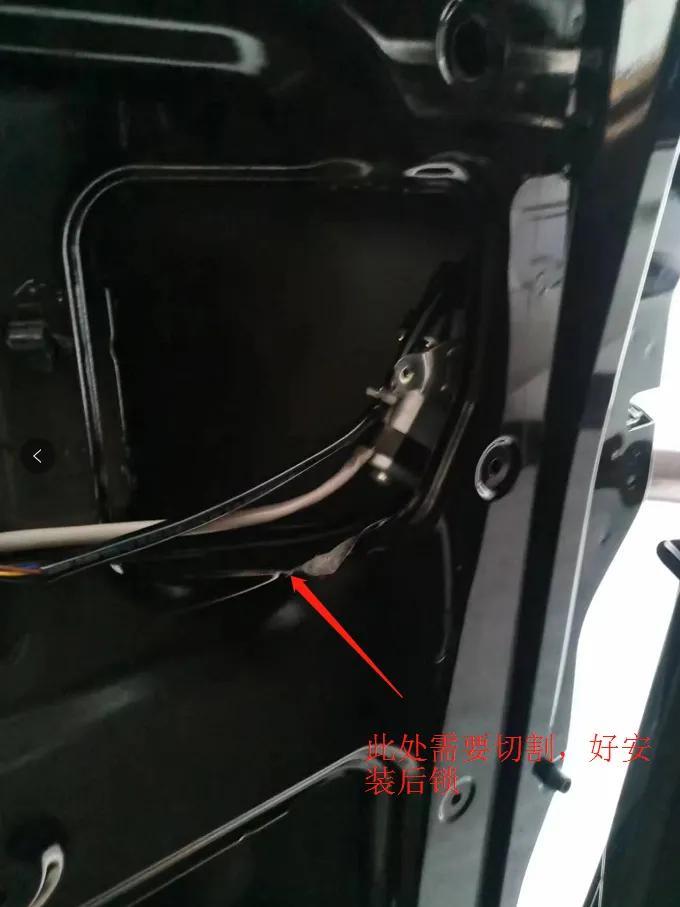

19. Install the rear lock ear gasket

20. Remove the pedal and wire:

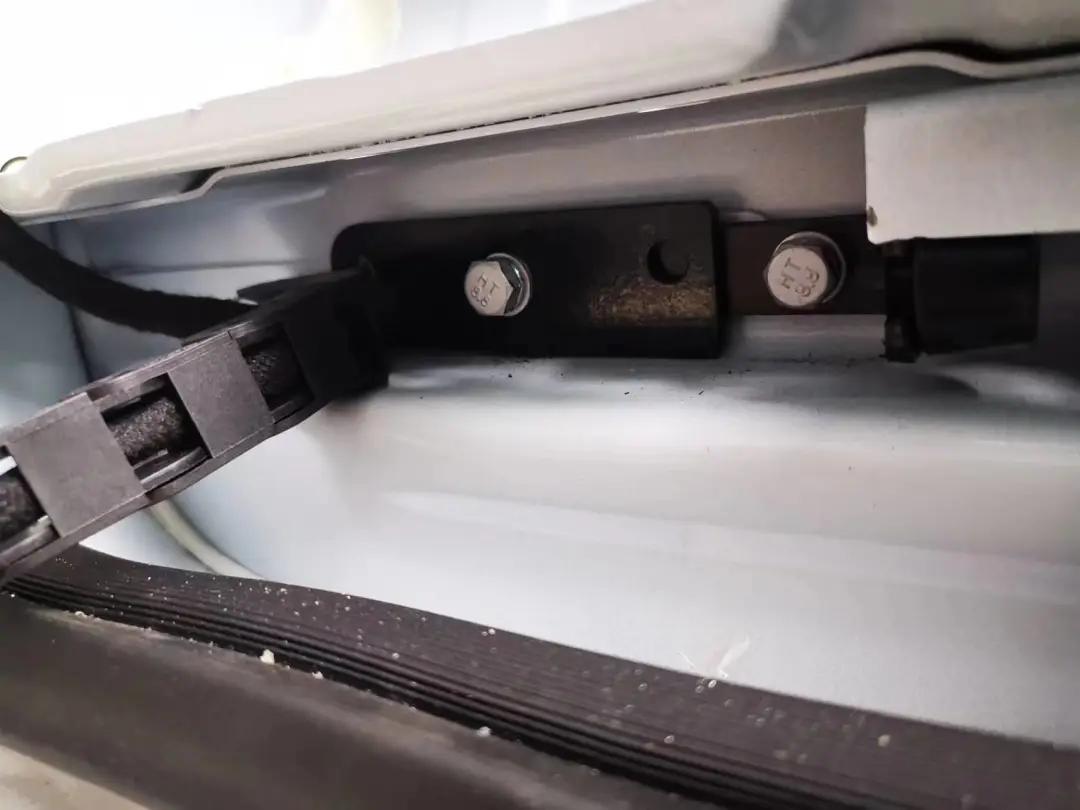

21. Install drag chain:

22. Line location:

22. Take the wire installation location:

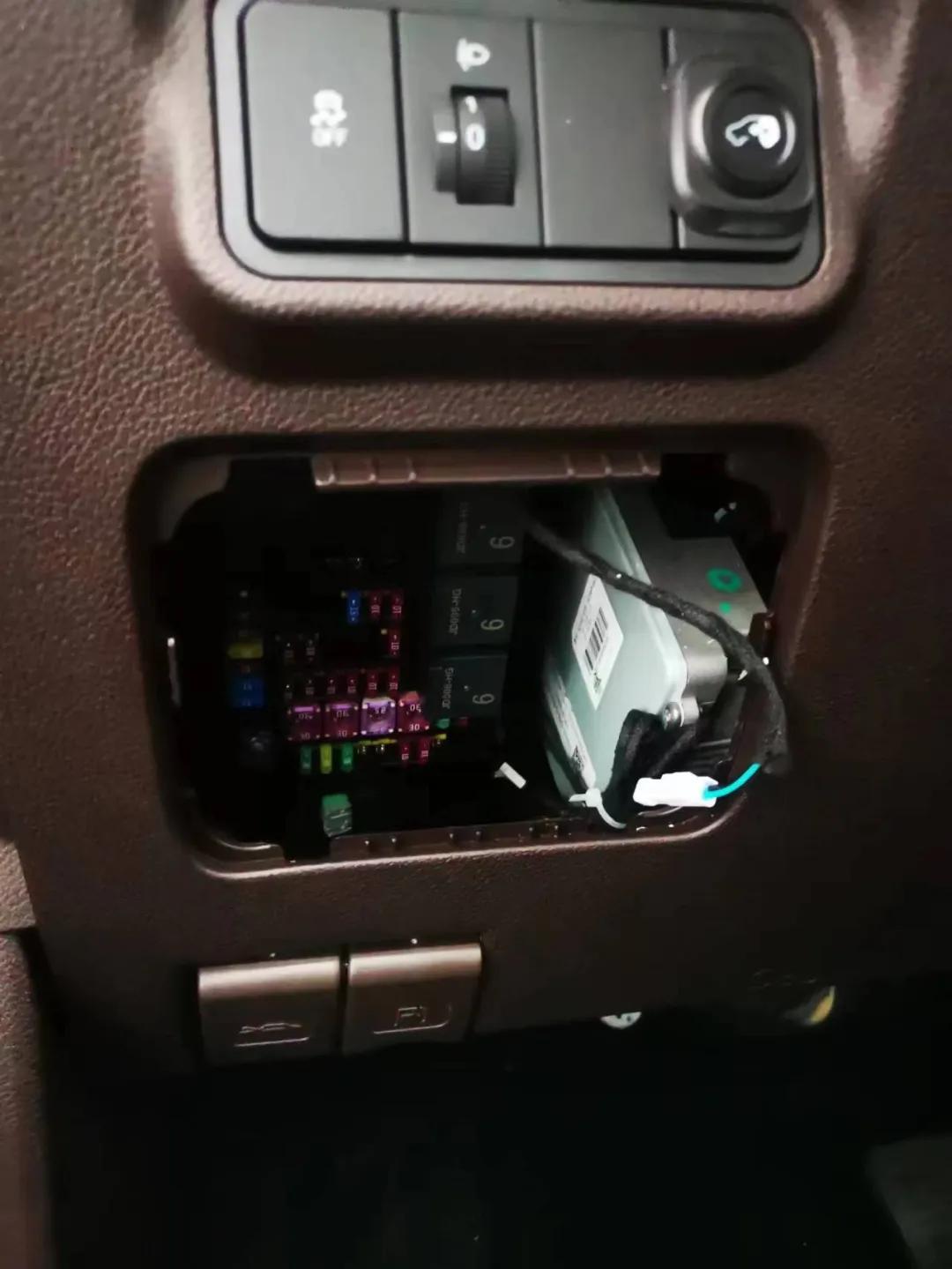

23. Take power and take out the body fuse box, which is normally powered and the engine is off (remove the car key) There is electricity in the state) is called normal electricity

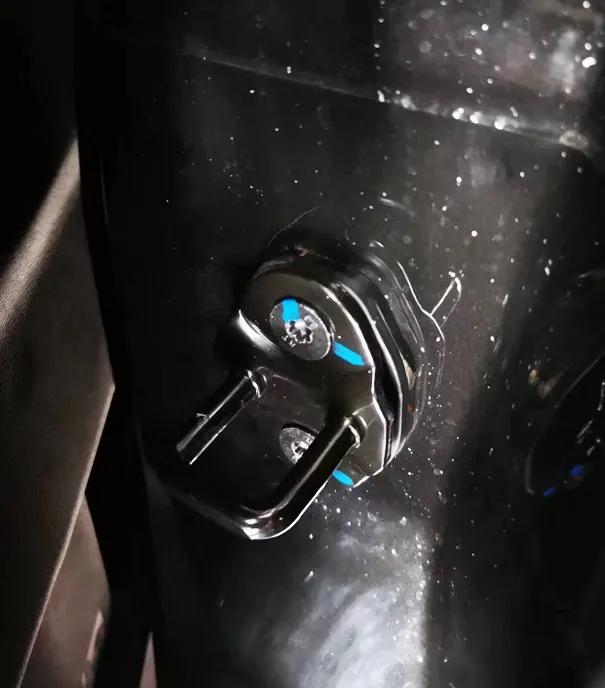

B-pillar switch installation location

Install anti-pinch strips
