Please keep the operating principle and structure diagram of the screw home elevator.

Home elevators driven by screw nuts are changing the way home elevators are used, maintained and installed. They are combined with hydraulic drive and traction drive modes Compared with elevators, the screw drive method is not well-known among commercial elevators. However, with the use environment, installation budget, and limited installation space of home elevators, the advantages ofscrew elevators for home elevators and villa elevators Gradually emerged in the project.

By understandinghow the screw home elevator works, you can make some decisions about the installation in your Keep an eye on the products in your home and know when they need maintenance or attention.

What are the main components of a screw home elevator?

Screw and nut driven lifts are one of the simplest lifting systems. Due toeasy installation, low usage costs and maintenance requirements, and few size restrictions, Xibaisi screw home elevators are becoming more and more popular with villa owners. One of the reasons is also because its drive method is screw drive. .

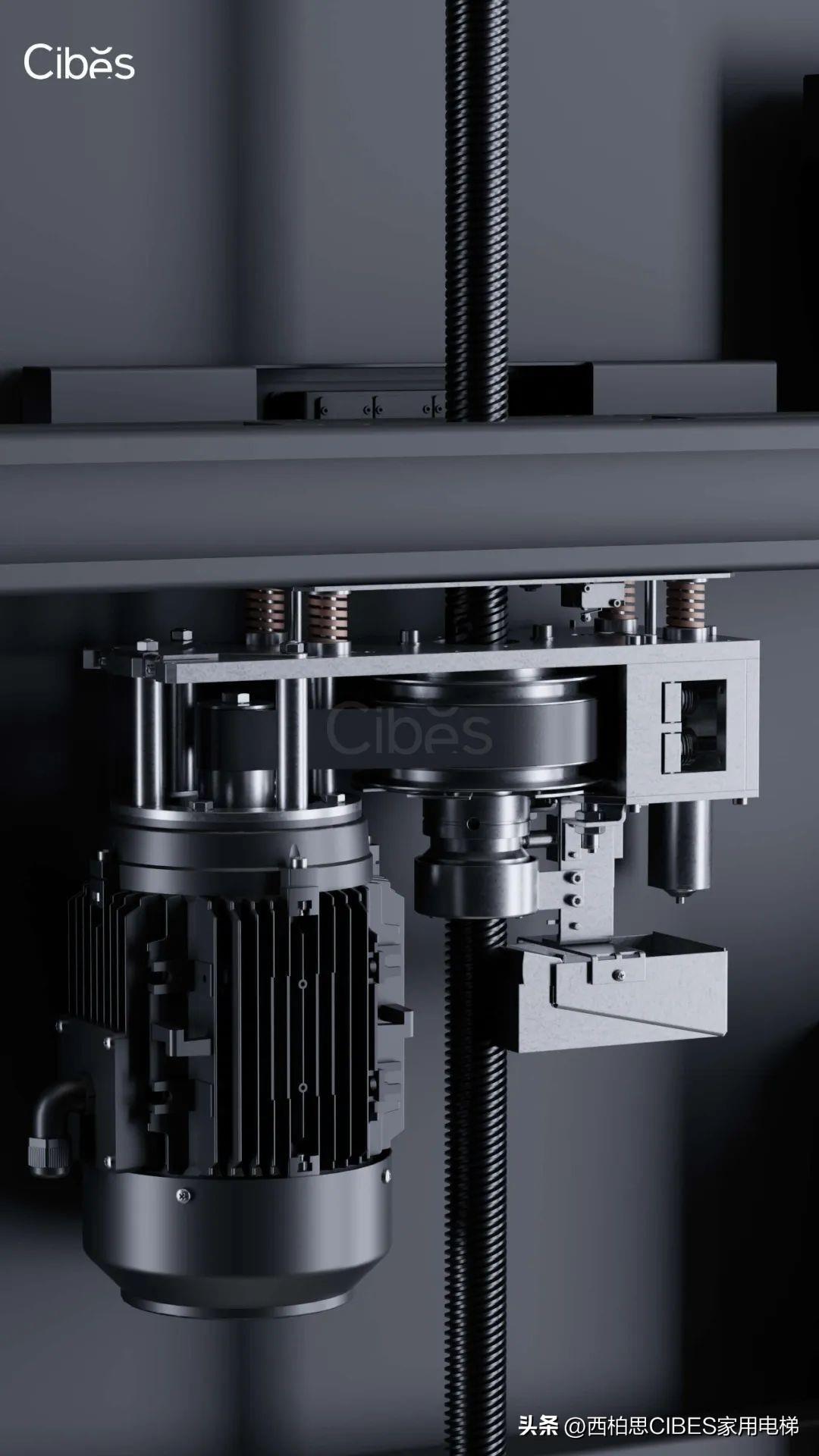

The main components of the screw drive elevator are:

Motor Screw drive unit (nut included) Electrical system

Due to the relatively small number of components, the screw elevator can meet the requirements of machine room-less and can be installed with a small footprint , due to the unique structure of the screw elevator, there is also no need to dig a pit, which saves the space requirements of the villa owner andreduces the related costs.Requirements for civil engineering projects.

How does a screw home elevator work?

The screw home elevator’s lifting method is very simple and ingenious. When the car or platform is connected to the driving nut driven by the motor, the nut rotates through the screw. When the motor rotates in one direction, the driving nut moves the platform or car upward. When the motor rotates in the other direction, the driving nut moves the platform or car upward. When , the drive nut moves the platform or car downward.

The entire driving process requires special screw oil for lubrication. Xibaisi screw home elevator is equipped with an automatic lubrication system. The screw can be kept oiled at all times, so frequent maintenance is not required. The screw elevator is a very safe and reliable system with a long service life(about 25-30 years, depending on different usage environments and maintenance conditions). The secret to its longevity lies in its simple structure.

Xibaisi screw home elevators have many product categories, including lifting platforms with their own shafts.

Such as cibes V80, which is an L-shaped lifting platform that runs up and down in the shaft. Therefore, you can see The shaft wall is around you, and Xibaisi also has a three-sided enclosed car-type screw elevator;

For example, cibes V90 is a screw-type home elevator with its own shaft structure. , has the feeling of box protection, and is driven up and down in the same way as a platform elevator, but the ride feels more like a traditional elevator

# Advantages

1. The simple structure means easier maintenance and service, and the cost and lifespan are very advantageous.

2. Since there are fewer parts, it saves space.

3. High safety performance. If the elevator encounters a fault during use and stops, basically the platform or The car stops here and will not fall or rise or fall.

4. There is no pit or machine room, and the modular structure design makes installation quick and easy.

5 , Beautifully designed, with 4-sided panoramic lighting, clean and bright, with strong transparency

6. Suitable for different home scenes, such as in the middle of stairs and by the side. It can be applied to wall locations and shafts.

# Disadvantages

1. The speed is not as fast as traction or hydraulic elevators, so it is not suitable for high-rise buildings, such as 6

2. Because of the integrated structure of the machine room, unlike traditional elevators with independent machine rooms, the screw elevator is designed without an independent machine room, so the running sound will be generated as the platform or car moves, and the sound can be heard inside the machine room. , but the advantage is that it is quieter when the door is closed.

3. The load capacity will be lower than that of traction or hydraulic elevators. The general load capacity is about 400KG, but the large Xibaisi A8000 also has a load capacity of 1000KG, which is suitable for bed elevators used in some European hospitals and clinics.

Screw home elevators have many advantages and may not be suitable for every environment, but for families and For villa users, screw home elevators are undoubtedly a safe choice for home use.
