Function explanation and limit adjustment of mobile door operator

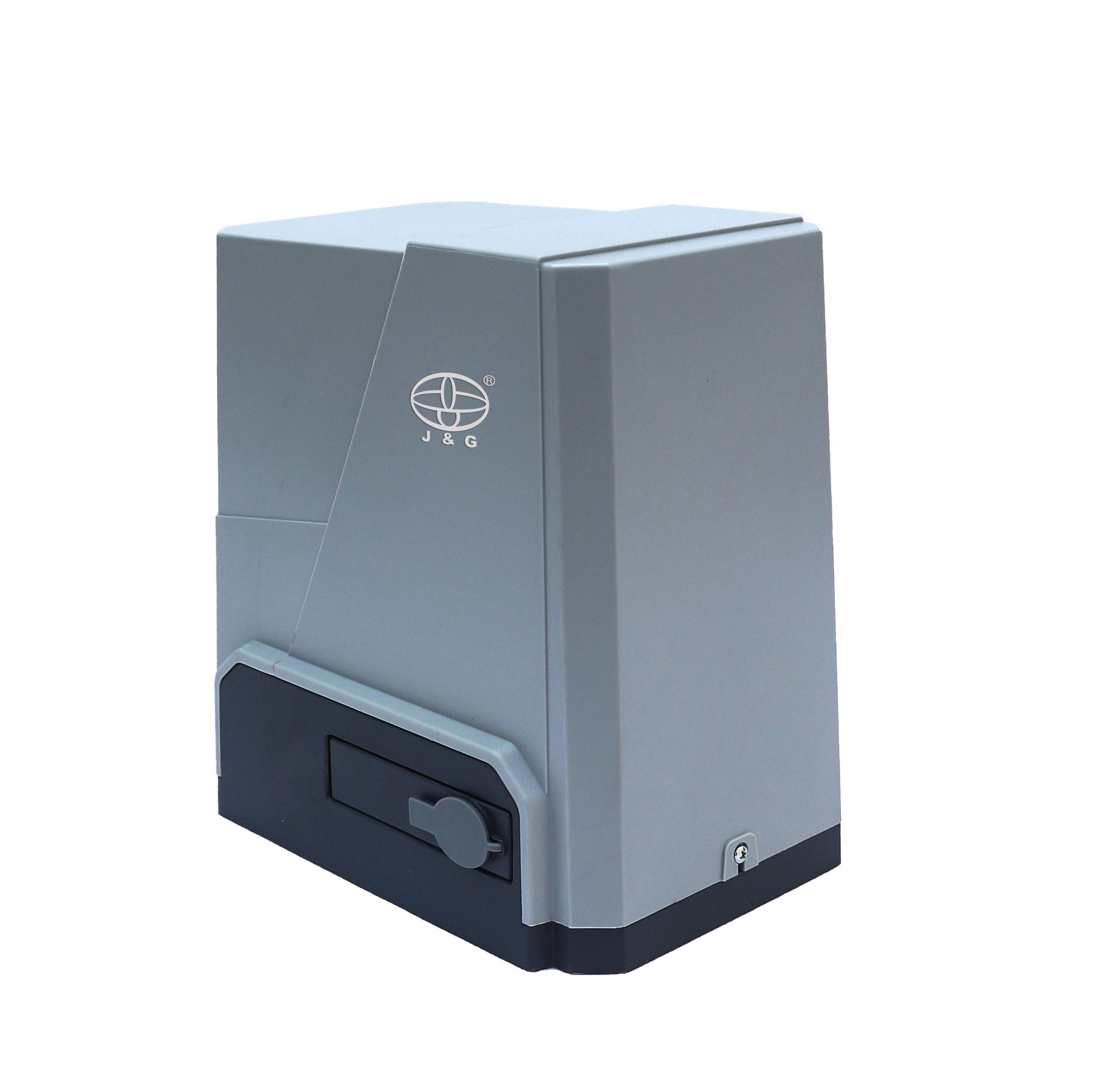

Juguang sliding door operators are divided into 800KG, 1500KG and 2000KG. The three types of sliding door operators are all AC working voltage 220V and the working environment temperature is minus two. The remote control distance can reach 50 meters from 10 degrees to 70 degrees Celsius

The power cord adopts 3C. When the horizontal power cord is more than one square meter, it must wear an anti-pressure arc tube when running open wires. When walking hidden wires, wear waterproof fixed pipes

Limit installation of sliding door operators

Opening limit magnets are installed on Where the green light is on, install the door limiter. First push the door to the closing position and then fix the door closing limit magnet at the position where the yellow light on the motherboard is on.

What are the functions of Juguang sliding door operator?

1. It can open the door remotely

2. Open the door with card

3. Open the door with password

4. Open the door with fingerprint

5. You can also open the door with your mobile phone

Multiple function options

The sliding door operator has a door-opening anti-shock stroke design. When we press the door-opening button and the door opens to the top, we continue to press the door-opening button. , without any movement, effectively protects the driving safety of the door body, and also has the function of opening and closing the door automatically. When the door body is opened, the door is forgotten to close. In about 2 minutes, the door will automatically close for you, and the time can be adjusted.

The internal mechanism of Juguang sliding door operator

1. The shell is Anti-UV material, restores aging and has good texture.

2. Reduction box procurementWith aluminum alloy base and floor, it is easy to install and durable.

3. The copper turbine material is not easy to wear, and the transmission cooperation between the turbine and the worm has strong locking ability and longer service life.

4. The electric motor uses copper wire candles and micro-steel sheets externally, which has good heat dissipation function.

5. Thermal protection function, it will automatically stop when the rated power is reached, and the safety factor is high.

6. Aluminum alloy clutch wrench, good use strength and longer life.

Debugging method of sliding door machine

1. For left and right installation and debugging, first open the clutch, pull the door to the middle position of the door, and then close the clutch. Then press the close button of the transmitter. If the door is running with the door open, you need to adjust the eighth position of the main board and the dialer to the left. If the door is running with the door closed, there is no need to dial the code. This operation can only make the door move for twenty or thirty seconds. centimeters, do not allow the door to move past the limit, otherwise there will be a risk of hitting the limit

2. To debug the limit, first turn on the clutch, push the door to the opening position, close the clutch, and press the transmitter door opening button. If the door body does not move, after pressing the button to indicate that the door does not move, you need to reverse the limit red and green lines. If the door can open normally There is no need to swap the red lines

3. To learn the stroke, first move the motherboard to the left along the fourth position of the dialer, then press the transmitter to open and close the door, and let the door move back and forth. , itinerary learning completed,
