The invisible door can be integrated with the wall in terms of objective visual perception, making the overall wall more complete in design and suitable for various design styles. (Baidu Encyclopedia)

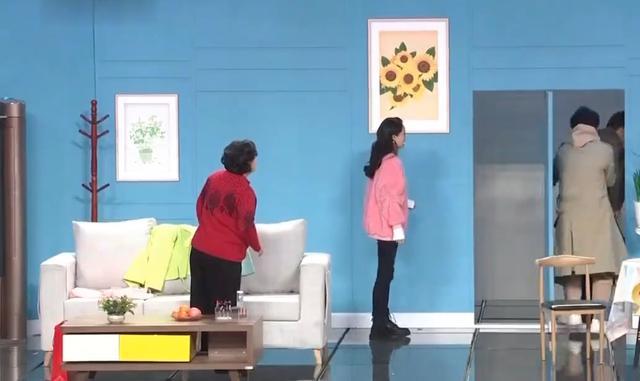

The large revolving invisible door on the Spring Festival Gala stage

The large revolving invisible door on the Spring Festival Gala stage

The door that appears on the Spring Festival Gala stage is actually called a revolving door. The invisible effect can be achieved by designing and installing it in conjunction with the wall panel, which is also a form of invisible door.

Revolving doors are also very common in home decoration.

Revolving invisible door partition

With the improvement of manufacturing technology and the improvement of various accessories, designs in home decoration that seemed difficult to achieve in the past are now very easy to achieve. , can also produce very good results

Invisible doors, revolving doors, and barn doors are most commonly used in decoration in recent years. Special interior doors

So what are the advantages of these types of doors compared to ordinary interior doors?Advantages and disadvantages?

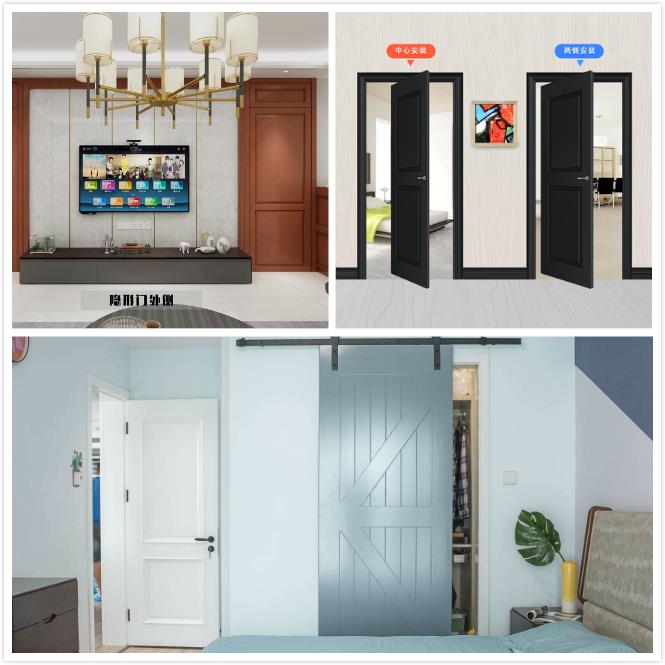

Upper left: invisible door; upper right revolving door; lower barn door.

Come to the point~! Comparison of several common doors. The doorhole width is 880mmas an example

First: Ordinary swing doors

Ordinary swing door opening inspiration

Components: Door leaf, door cover, door cover line, hinge, lock, door catch.

Door leaf styles:Various styles, colors and styles;

Materials:Wood, MDF, wood plastic, titanium-magnesium alloy are all available;

Opening width:880mm;

Through width:780mm;

Door leaf thickness:

strong>38mm, 40mm, 42mm, 4 Mostly 5mm;

Opening angle: greater than 90 degrees;

Fixing method: Hinges are fixed, and the door leaf is generally against the indoor surface. Side;

Hardware requirements:Ordinary ticking hinges or double and double hinges, suitable for various locks, such as handle locks, ball locks, card locks, fingerprint locks, etc.;

Applicable scenarios :All interior doors.

Ordinary swing doors

Advantages:

1. The technology is mature, the materials, structure and processes are stable, and there will generally be no major after-sales problems;
2. Wide choice of materials;
3. Mature and popular product, the price is lower than other doors of the same style;
4. The door cover is equipped with sealing strips or magnetic Suction strips, good sealing and sound insulation.
5. Hardware has strong adaptability and low price.

Disadvantages:

1. Slightly less consistent with the overall decoration than other invisible doors;
2. Traditional form, no other design Large space.

Swing invisible door

Inspirational intention of flat opening invisible door

Components:Painboard, T-shaped door leaf, special door cover, door cover line, hydraulic Hinges, invisible locks, door catches.

Door leaf style: The color style must be coordinated with the wall panel;

Materials: Wood, MDF, wood Plastic, titanium-magnesium alloy can be used;

Opening width: 880mm;

Passing width: 756mm;

Door leaf thickness:5 0mm, 55mm mostly;

Opening angle: Maximum 90 degrees;

Fixing method: Hydraulic hinge fixed, door leaf On the outdoor side, it is invisible when integrated with the parapet;

Hardware requirements:Hydraulic rebound positioning hinge, single-sided invisible lock;

Applicable Scene:Special scenes required by the design, such as a door on the TV wallThe hole, the bathroom door is facing the main door, etc.

Invisible door TV wall, with the invisible door on the right and the same wall panel on the left.

Advantages:

1. Design space Large;
2. can visually expand the wall area;
3. Opening takes up less area.

Disadvantages:

1. Due to structural problems, the door leaf is thicker, heavier, and slightly less stable;
2. The material options are small and only Can use wood or medium fiber materials;
3. Independent installation has no effect and needs to be combined with wall panels to achieve the effect, so the price is higher;
4. The accessories are complex and expensive , the price of hydraulic rebound positioning hinges is relatively high, and due to the complex internal structure, the repair rate is also high;
5. The production period is long.

Invisible door wall panel renderings

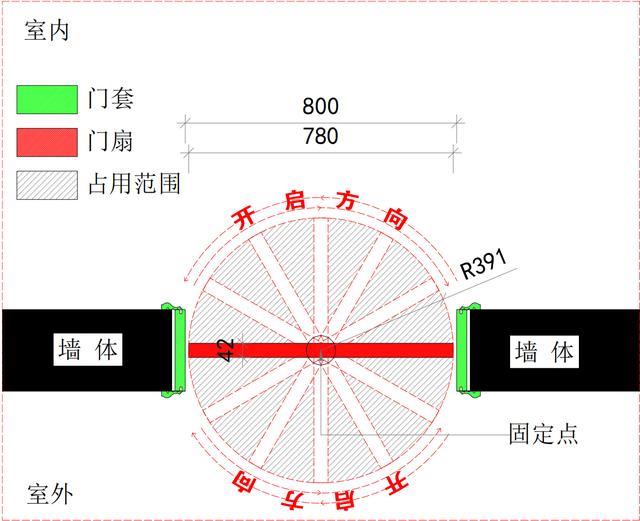

Rotating invisible door

Revolving door opening inspiration

Components: Door leaf, door cover, door cover line, heaven and earth shaft, special lock

Door style: Customized or matched with wall panels Combined to make an invisible door;

Materials: Wood, aluminum alloy, stainless steel, etc.;

Opening width: 880mm;

Passage width: Clear door opening 780 mm, the actual passing width is 390mm or 730mm;

Door leaf thickness: Mostly 38mm, 40mm, 42mm;

Opening angle: Maximum 360 degrees;

Fixing method: Fix the upper and lower rotating shafts, and fix the middle or one side of the door leaf;

Hardware requirements:The upper and lower rotating shafts, special locks;

Applicable scenarios:It is rarely used in home decoration and is mainly used in some commercial places.p>

Advantages:

1. Large design space;
2. Can visually expand the wall area;
3. The styles and colors are random;
4. Multiple revolving doors can be used to form partitions.

Disadvantages:

1. Because the door needs to rotate, there needs to be a gap between the door leaf and the door cover, which cannot be sealed. The sealing and sound insulation effect is very poor;
2. Basically they are fixed and rotated in the middle. The passing size is only 1/2 of the door leaf, and the door leaf needs to be very wide. Rotation also occupies a relatively large floor space;
3. Independent installation has no invisible effect. If it is combined with wall panels to achieve the effect, the price of the whole piece will be higher;
4. Household wooden door rotating parts are commercially simplified, with poor stability and durability, and a high failure rate;

Swinging door partition

Barn door

Barn door opening inspiration

Components: Door leaf, door frame, track, pulley, stopper

Door leaf style: Mostly Nordic and Mediterranean style;

Materials: Wood, MDF, wood plastic, titanium-magnesium alloy;

Opening width: 880mm ;

Through width:800mm;

p>

Door leaf thickness: Mostly 38mm, 40mm, 42mm;

Opening angle: Push and pull to open, push and pull on one side or push and pull on both sides;

Fixation method: The track is fixed on the wall, the door leaf is equipped with pulleys and hung on the track, and a limiter is installed at the bottom;

Hardware requirements: External track pulleys;

Applicable scenarios:The width of the wall on one side of the door opening is greater than the width of the door opening.

Barn door

Advantages:

1. Small space occupied;
2. Good design effect;
3. The styles and colors are random;
4. It can be pushed and pulled with single or double fans

Disadvantages:

1. Needs to be hung on the wall, protruding from the wall, lightweight partition walls cannot be installed;
2. Do not place or hang anything on the wall or floor on the sliding side of the door leaf;
3. Door leaf and door cover wall They are not combined and have no sealing and sound insulation effect;
4. The failure rate of the bottom limit wheel is high;

Barn door

Summary

Comparison

Ranking based on cost-effectiveness and practicality for home use:

Ordinary wooden doors – swing invisible doors – barn Door – Revolving Invisible Door

Sincerely~!
