Facial recognition + IC card swiping advertising sliding door installed in the community

Intelligent design and construction of Linzhou Yuntong Yuheli Villa Area, the pedestrian passage is 3.08 meters wide, the sliding door has regular sizes (2.6 meters, 2.8 meters, 3 meters, 3.2 meters), and 3 meters is selected for installation

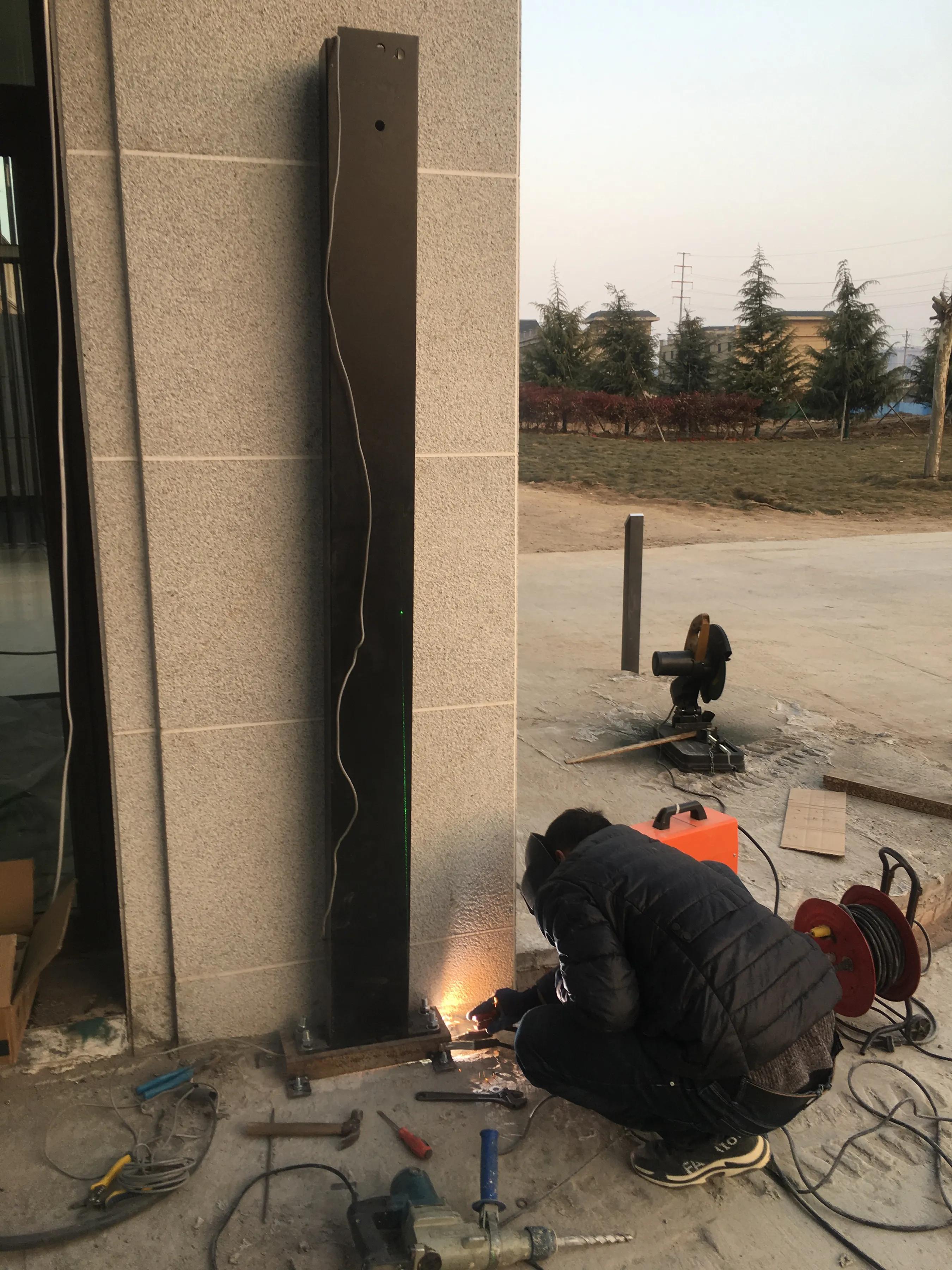

First fix the columns on both sides. There is a direction for installing the columns. The notched side of the column faces the community, that is, the side with the motor faces the community. Use a level to install it vertically

Comes with 160mm*200mm expansion screw, use 20 electric hammer head

The height of the columns on both sides must be the same

Then install the cross beam and tighten the four screws on both sides.

Then install the fixed door leaf (advertising light box), just use dovetail screws to fix it on the top and side.

The next step is to fix the movable door leaf with the hanger and hang it on the track. The mechanical part is basically finished, and finally the cover is added

… …

The next step is the circuit part

You need to connect the induction radar, face recognition machine, and exit button

The induction radar is anti-following and pinching, four-core wire, brown power supply +, green power supply -, white and yellow signals

The face recognition machine needs to be connected with three cables, one network cable (to add the face and IC card, one 12V power supply, and another two-core control cable ( Control door switch), the control line needs to be connected to the sliding door controller wiring. The two terminals of access control signal input and GND have no wiring sequence. This is the so-called normally closed. If a safety grating is installed, a safety light must be connected. Input and GND

The exit button also needs to be connected to the access control signal input and GND

The connection method of the IC card reader is the same as the camera signal, but it needs to be powered by 12V Connect to the 12V output of the sliding door controller

Let me share it with you today. Everyone is welcome to learn and communicate with each other
