Practical new gadget, semi-automatic (manual) sliding door exterior pneumatic door closer

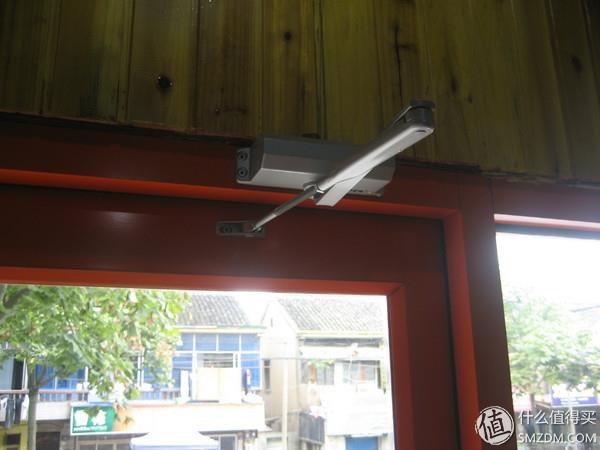

Automatic door closers for sliding doors are very common, semi-automatic (that is, manual), and can be used for fire doors of various shops and units. Often seen. There are also various invisible forms, which are used in bathrooms and other places where the door is relatively light.

Automatic door closers for sliding doors (sliding doors) are often seen on the doors of shops and bank business halls, and they are basically electric Induction type (when it detects someone, the motor will open the door, and when no one is around, the motor will automatically close the door).

The above are basically for commercial use, and there are also some invisible and small sliding door closers used at home. However, automatic door closers for sliding doors (sliding doors) used at home are rare (rich people who buy electric ones for home use do not need to read further).

During the renovation, the home adopted a dressing room design, and in order to save space, sliding doors were made. It took a while to move in. Realize that if you don’t close the door, dust can easily enter the locker room. Dust. People are lazy and have bad habits. You can guess the result…

I don’t want to cure my lazy cancer, so I have been thinking about whether I can install an automatic door closer to automatically close the door for me. I have no choice but to start from 10. I started paying attention to it years ago, but I haven\’t seen such a product for so many years. I thought I would pull a rubber band until I was browsing something else on Boss Ma\’s store and accidentally discovered it.

As soon as I saw it, I was stunned by the price of thousands or even three thousand. My entire sliding door has never been so expensive. Good or not. When I was about to give up, a product that only sold for 190 caught my eye.

It doesn’t look big or ugly, the functions are what I want, and the price is not expensive. Can you consider it? .

I consulted with the shopkeeper and took a photo of my door to the customer service. After getting the reply \”guaranteed no problem\”, I decisively placed the order. Here’s a preview: The shopkeeper was too confident, and something unexpected happened, but luckily it turned out to be okay in the end. I will make an explanation later.

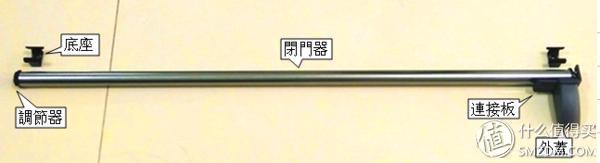

Stealing a picture, let me introduce the product first. The base is used to fix the door closer rod body; the regulator is used to adjust the closing force (speed); the connecting plate is used to connect the door closer and the door; the outer cover is used to hide the ugly appearance. Automatic closing means that the door closer rod has elasticity and damping. After you open the door, it will automatically close the door slowly.

The seller’s introduction is: [Functions and advantages: A new generation of patented product, which can be installed externally, hiddenly installed, and is a semi-automatic system with explosion-proof pneumatic deceleration. The two-stage adjustable door closes without any sense of oppression. Shock-absorbing and silent operation, the door-opening terminal is designed to be fixed without a door sucker, allowing the door to be kept open. 】

After receiving the goods, my daughter said it was a golf club and almost swung it out…

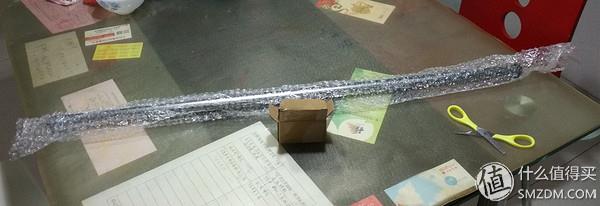

Take it apart, and the most important pole is covered with bubble bags. The pole is actually made of full metal, so I’m not too afraid of it.Bending and bagging are mainly to prevent scratches. On the hitting end of the golf club is the accessory box.

The custom is to take a family photo. Comes with a printed instruction sheet. Personally, I feel that this instruction manual is average. It is better to record a \”close-up\” video of the installation, watch it online, and explain the precautions, which is easier to understand.

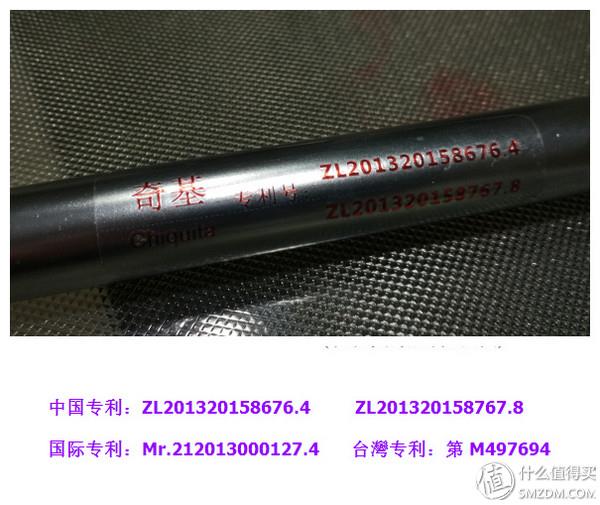

The utility model patent number was affixed to the pole body with great confidence. I checked online and it is true. Sometimes, the customer service person you chat with on Want Want is the patent applicant.

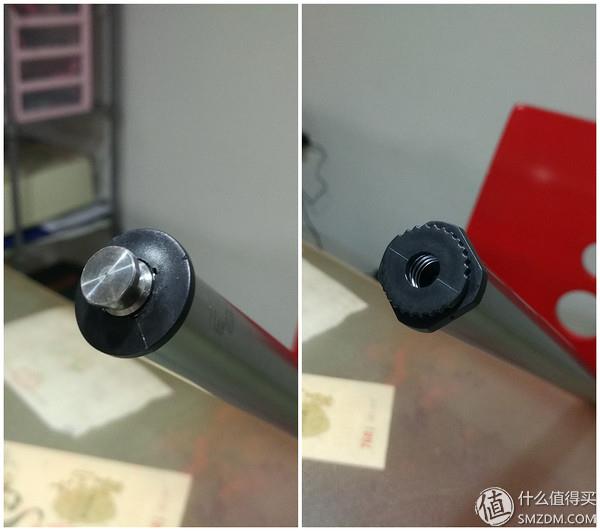

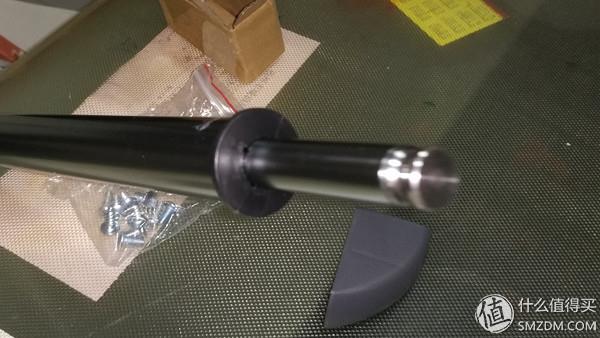

As shown on the left, the metal head is one end of the telescopic rod and can be pulled out. Through the connecting plate, this end is connected to the door, allowing it to move together with the door.

In the picture on the right, the black plastic with gears is the regulator. Tightening the door is slower, and loosening it is faster.

This is what the telescopic rod looks like when it is pulled out (taken during the retraction process, it is blurry), and the sliding process is relatively smooth. During the retraction process, you can hear a \”hissing\” coming from the other end of the regulator. \”The sound of air flow, I don\’t understand the principle of this thing. The so-called pneumatic movement should be related to it.

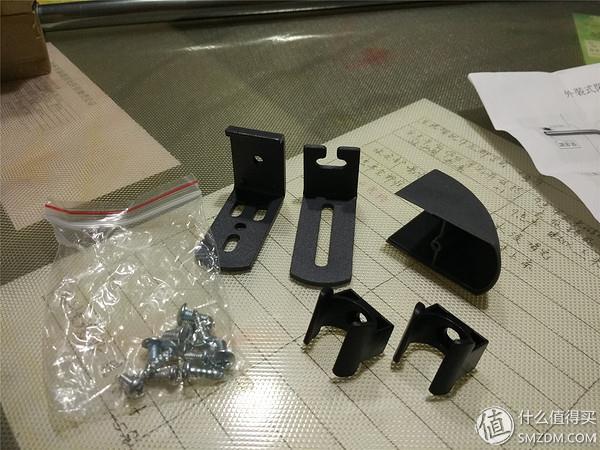

A close-up of the accessories, very simple.

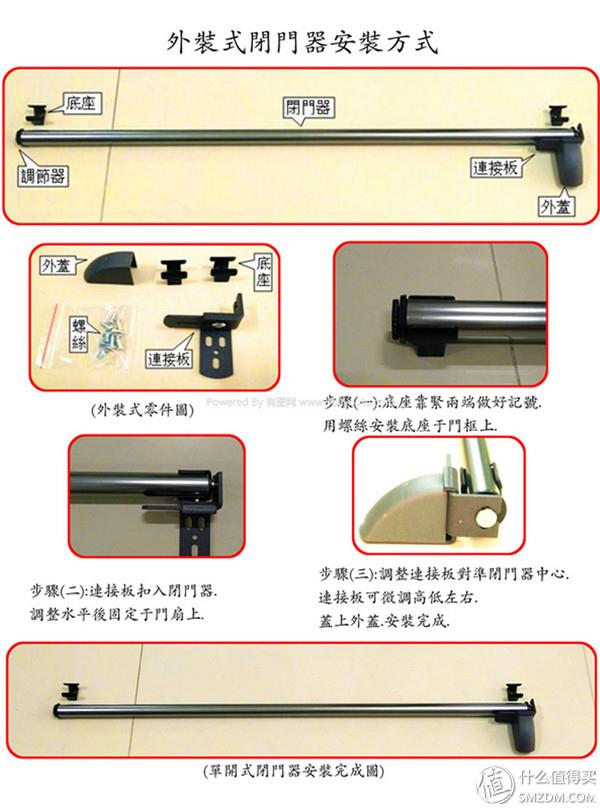

Here is a colorful instruction manual to see how to install it. Basically: install the base and pole first, and then install the connector. Adjust the position, test and adjust and optimize, and complete.

A few points to note here:

1. The two fixed clips of the base must be stuck at both ends of the pole to keep the pole in place. It cannot be moved after installation. Otherwise, the pole will move with the door, causing the door lock to fail and the door to close incorrectly.

2. Before drilling holes in the door, roughly install the connector and mark the position. Although the connector has a certain adjustment stroke, it cannot be too far apart.

3. Aluminum alloy sliding doors must be drilled in advance with a small drill, otherwise the screws cannot be screwed in directly with a screwdriver. Metal is not wood.

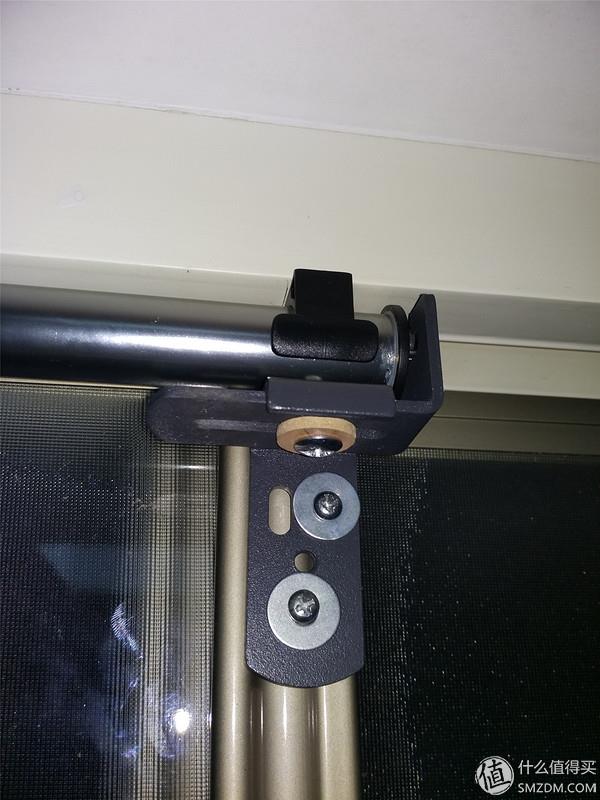

Let’s take a close-up of the connector. It consists of two pieces and is fixed with a screw in the middle. The material of this connector is really thick, probably to avoid movement. Deformation occurs, affecting the automatic door closing effect.

Please ignore the sliding door that was custom-made by a scumbag craftsman back then. The rail was too thick to fit in, so I finally got it flattened by a semi-acquaintance. At that time, I was worried about people\’s face. I want to explain here that the door frame of my sliding door has a shape. Yes, the metal frame where the screw hole is on the left is actually recessed. For this reason, I only drilled two holes and installed two screws (there is one screw that is not easy to drill if it is flat). The door frame is very convenient, and it is more stable with three screws.

Pole The installation is very simple, the key is the installation and adjustment of the connector.

The shopkeeper told me that the connector should be horizontal and vertical so that it can be closed smoothly. I didn’t pay much attention to it at first. I always feel that as long as the connection position is correct and the connection is stable, it will be OK, but the problem keeps appearing after installation. The problem was that it couldn\’t be closed by a few centimeters. After a lot of fiddling, I completely disassembled it and started again. I finally figured out how to install it.

The first step is to roughly connect the two pieces of metal with screws. Lock it tightly and it will be loose enough not to fall off;

The second step is to close the door tightly and insert one end of the connector into the poleMetal end. At this time, because the connector has not been fixed, it is very easy;

The third step, since the left and right adjustment range of the metal sheet on the connector is relatively large, so after finding a similar position, first confirm the connection Pre-punch the approximate position of the metal sheet under the device, and then preliminarily fix the metal sheet below.

The fourth step is to try to find the most suitable position for the lower metal piece: the upper metal piece fits exactly on the pole. It is best that the place where it is set is not too tight up, down, left and right; at the same time, the two pieces are connected The metals of the connector are basically touching each other, and the lower metal piece is vertical and the upper metal piece is horizontal (the purpose of this is to make the connector easily meet the horizontal + vertical conditions after the screws are tightened).

The fifth step is to tighten each screw and test. If you find that the door is not closing smoothly, check whether the position of any component in the fourth and fifth steps is \”hardly broken\” to meet the requirements, and adjust it appropriately so that it is \”just right\” in the required position, and it is OK. .

Basically, the picture above is a failed example. Because I did not adjust according to the above steps, the door often failed to close tightly by 2 centimeters. My own analysis is that the position of the connector is achieved by \”hard-breaking\”, which gives the pole an \”extra\” pulling force, causing the last section of the pole to be too stressed on the side and have too much friction, so it cannot return to its position. After I readjusted it later, it is now very smooth.

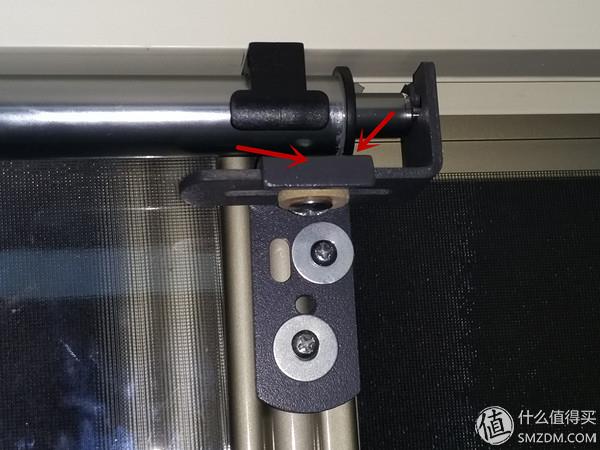

I also make two suggestions here: First, metal gaskets should be provided in the accessories. Without gaskets, it is easy to cause the metal sheet to shift due to force when the screw is tightened (the two metal gaskets in the picture above) (I found the connector myself); secondly, the fixing screw between the two connectors is too long. If I had not used the thick gasket in the picture above, the protruding part (arrow on the left) after tightening the screw would be in contact with the right one. The plastic parts of the arrows push together, causing the door to be blocked.

Don\’t be frightened by the picture above which is full of screws. There is also a \”hide cover\” at the end, which covers the connector after it is installed. It looks much better.

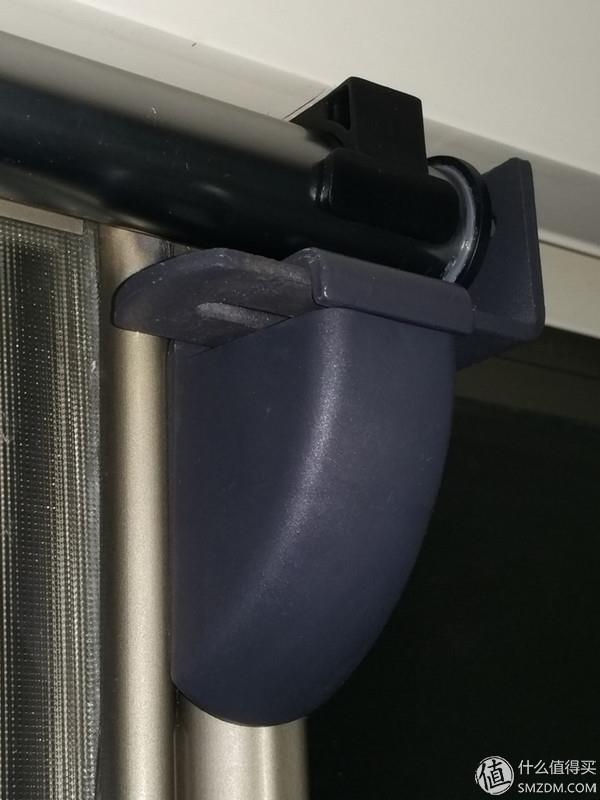

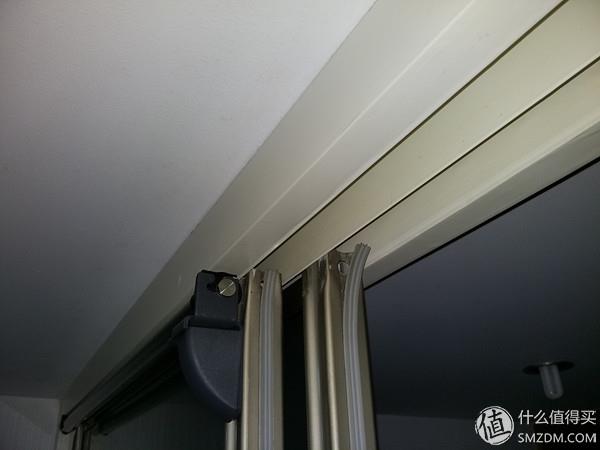

It looks good after the basic installation. The whole thing is relatively coordinated and not too obtrusive (the decorative cover has not been put on in this picture). But why does it look like the decorative pole on the glass is crooked?

Let’s take two videos to show the effects of door locking and damping door closing respectively. Generally speaking, they are very useful. Generally, when entering and exiting the dressing room to get clothes, the door can be closed automatically without opening it all the way; If you need to open it all the way, the door will automatically get stuck.

Just post an order. , it’s basically over here. As mentioned earlier, the seller was overconfident, which led to an accident. On the one hand, my sliding door is a bit special, and on the other hand, there is a detail that needs to be paid attention to and explained to the seller. , as a reference for everyone and sellers.

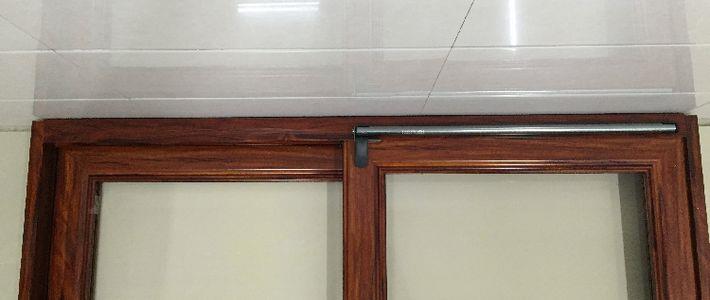

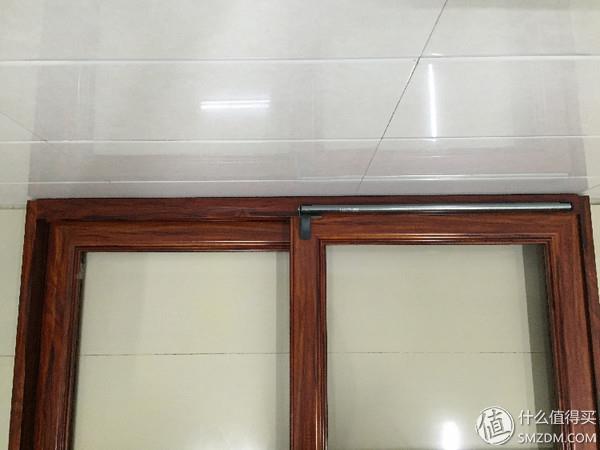

Most sliding doors should look like the picture above. There is a movable door in the middle, surrounded by a circle of door frames (as shown in the red box). The door frames and The door is basically on the same plane, just a few centimeters off. The thickness of the board is only 1 meter.

In this case, the installation method is the seller’s standard demonstration pattern. The pole is installed sideways on the door frame. In this case, the single door can be as long as it is wide. Door closer

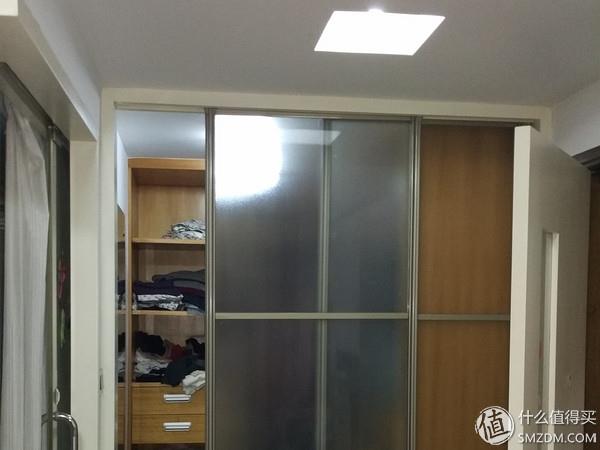

And everyone pays attention to the sliding door customized by my master. The upper door frame (that is, the upper rail part) is hidden in the wood. As a result, my pole cannot be installed on the side. It must be Lifting. As for the left and right sides, I don’t have a door frame at all, and the sliding door is directly pressed against the wooden surface! The frame and installation method bring about a problem: if the pole size is not suitable, common sliding doors can be adjusted by moving the pole left and right on the door frame. However, my sliding door is difficult to adjust once the pole size is not suitable. The suspended pole will be held up by the door frame!

I followed the seller\’s request and told the seller that the door was 2000px wide, and the seller sent me a 2000px pole. As a result, my door frame could not adjust the position of the pole, and the door opening space on the right side was only 1875px, resulting in the rod not being able to reach the desired length after opening the door and unable to lock the door. It\’s just that the \”door touch\” function of opening the door and locking itself cannot be realized. After communicating with the seller for a long time, he realized that my door is special… I sent the pole back later, and the seller sent another 1875px one, which was perfect.

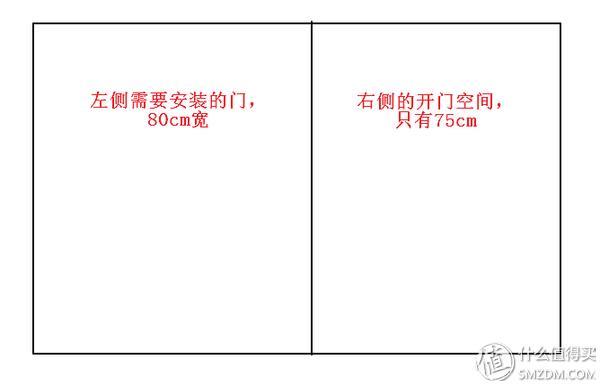

If there are sliding doors like mine, please remember to tell the seller two Size: The width of the door where the door closer needs to be installed (the seller requires the size you provide by default), the width of the space to open the door on the right side (that is, the distance that the left door in the picture above can move when opening to the right, the seller will not ask for this size) .At the same time, please remember to tell the seller that your sliding door is different from the ordinary one!

After knowing the reason, I used my brain and found a cylindrical foam piece at home and cut it. Suitable size, stick on the right side of the lower rail with double sided tape (As shown in the picture above). In this way, when the door is opened to the locked position, the up and down movements are consistent, and there is no need to force the door. The success rate of the door opening self-locking function is close to 100%.

Overall, it is OK. , this semi-automatic (manual) sliding door is equipped with a pneumatic door closer, which allows the sliding door to close automatically. It solved my problem and is relatively rare. It is a practical new gadget, so I will share it with you.

Advantages:

It can be locked after opening the door, which is equivalent to having a door sucker to realize the door\’s normal opening

It can automatically close the door with damping and adjustable speed

The installation is not complicated. Anyone with certain hands-on skills can do it under guidance (if it is a conventional sliding door with a door frame, it should be easy to install)

It is said that there are also hidden ones that can be used for sliding. It is customized before sliding the door, which is more beautiful

Disadvantages:

The gasket is missing from the accessories

The fixing screws of the two connectors are too long and may affect the Smooth opening and closing of the door

Purchasing notes:

Please remember to tell the seller whether your sliding door is conventional, and send pictures to the seller for confirmation to remind the seller to pay attention!

Please remember to tell the seller two sizes!
