Residential) Decoration construction technology and joint door and window railing projects

Section 2 Door and Window Hardware

1. Material Standard

2. Technical requirements

1. Material standards

The material brands, specifications and models selected for door and window hardware should comply with the group\’s designated products, contracts, samples and design requirements

1. Door and window hinges Configuration requirements:

The materials selected should comply with the contract, sample and design requirements;

The swing door leaf should be equipped with 3 hinges, the window sash is higher than 1500mm, and each leaf should use three pairs of hinges;

2. Door and window lock point configuration requirements:

Sliding doors can use single-point locks, and swing doors are recommended to use three-point locks. The length of the transmission rod should not be less than 1.8 meters. Plastic steel windows and aluminum alloy windows can use two-point locks or multi-point locks. The length of the transmission rod should not be less than 2/3. /p>

3. Handle configuration requirements for casement doors and windows:

The color of the handle should match the frame material;

Handle height: When designing the height of door and window handles, attention should be paid to user convenience. The normal window handle height is from the ground

1500mm—1800MM, the door height is at 900mm -1100mm. If the hand is designed to deviate from the above range after the hand height is deviated, the hand height should be adjusted appropriately, but at the same time, it is necessary to consider that the transmission lock point cannot be cut off.

4. Configuration of the flat window friction hinge (slide)

5. >

The sliding door fan should use the double skid wheels of the high-strength nylon national bearing of metal shell (aluminum alloy, stainless steel),

The weight should be It is determined by calculation that when the fan width design is greater than 800mm and the hollow glass, the double -slit wheel weight should not be less than 65 kg.

6. Doors and window screw material requirements: The material should meet the contract, model, national current standards, design requirements

doors and windows connection The screws and bolts are used for stainless steel fasteners, and galvanized screws shall not be used.

7. The requirements for the setting requirements of the upper-hanging window limit measures: the material should meet the contract, the model, the current standard of the country, the design requirements of the design

The opening angle of the upper suspension window is not greater than 30 degrees, the opening spacing is 300mm, and the should be configured with a configured limit of 300mm.

When the upper hanging window width is greater than 800 or the height is greater than 1000, fixed measures such as wind support should be adopted.

8. Configuration of fixed gauze fans: Make a model according to the requirements of the contract

Outer windows can be opened. The screen window should be designed. The installation position of the screen window shall not hinder the normal opening of the window; the installation method and structure of the screens shall be easy to disassemble, clean and replace. The mechanical properties and wind pressure resistance of invisible screens and accessories should meet the design requirements.

Determine whether to increase the fixed gauze fan during the design stage, and reserve the gauze fan track during the design of the profile.

<img = \"https://p3-sign.toutiaoimg.com/pgc- Image/22EAE0537E544D72AC64650970B~TPLV-Origin-WE B: GIF. jpeg? _iz = 58558 & from = Article.pc_detail & LK3S = 953192F4 & X-EXPIR ES = 1738541958 & SIGNATUR

>

Section 3 aluminum alloy doors and windows

I. Material standard

Two, construction process and quality requirements

3. Acceptance standards

I. Material standard

Profile: Material Group designated brands, section width, insulation bars brand, broken bridge width, and main material wall thickness should meet the contract and design requirements;

glue: sealed glue, foam glue brand, specifications should meet the contract and design requirements;

Glass: glass brand, glass original tablet thickness, air interval layer thickness, coating should meet the contract and design requirements;

Frames and swelling embolism: The wall thickness should not be less than 1.5mm hot-dip galvanized steel pipe, the section size is 20mm*40mm; Rust;

All screws and bolts for on-site installation should be made of stainless steel, and galvanized screws are strictly prohibited;

2. Construction process and quality requirements

Installation process:

Cave entrance review → Frame installation → Frames close → Lord Frame installation → Install fixed glass and glue seal → Install and adjust the doors and windows and hardware → Plastic seal around the doors and windows → screen installation → check and accept

Second, construction process and quality requirements

1, 7 and 7 floors open windows, and the window glass or glass bottom with an area of ​​1.5m2 is off the final decoration The floor-to-ceiling windows that are less than 500mm should be tempered glass, and tempered glass should have a CCC logo; tempered glass should avoid incomplete craftsmanship and serious appearance defects such as ripples, imaging distortions, and centralized deformation; = \”65\”> 2. The craft holes installed on the hardware should not be set on the insulation material;

3. ; Glass pressure strips must be indoor installation methods;

4. The outer suspension window should be set up to ensure that the opening distance is not greater than 0.30m (the height distance is greater than 1.20m more than 1.20m. Except);

5. The flat window should be at least 2 points. The flat windows with a club must be set up. Inner flat windows should be installed and promoted. Pushing doors and windows should be installed with anti -collision blocks;

6. The outer window should be set up with a leakage hole, and the installation and configuration of the leakage hole cover is complete. The installation of doors and windows craft holes is complete without omissions;

7. The surface of the sealing glue should be smooth, straight, full, and without falling off. The rubber seal or wool strip of the sliding doors and windows should be intact and no fall;

8. The door and window handle and the color of the clip and the color of the profile, the window handle is highly reasonable, reasonable, convenient and convenient Operation, doors and windows are prohibited on the buckle;

2. Construction process and quality requirements

9, doors and windows profiles Or the buckle is tightly seamless, and the surface of the seam or the surface of the buckle is not high and low. All doors and windows and windows must not be set outdoors (see page 108/112);

10. After the doors and windows are closed, the sealing effect should be sealed between the fan and the frame. It is strictly forbidden to occur. The inner and outer surface of the door of the doors and sneakers should be flat on the surface and outside of the frame profile;

11. When the area of ​​the doors and windows is too large, the vertical frame in the profile must have enhanced measures (built-in rectangular steel core core Or use the wall thickness ≥2 mm to strengthen the medium 梃, and the bald part of the medium cricket should not be designed on the side of the room; and the middle cricket should be reliable to connect with the structure of the structure);

12, seven floors (including seven floors) above are recommended to use internal windows. When designing as an exterior window, safety glass should be used, and hollow glass should be double -layer. Disassembly device and anti-shedding measures from outdoor;

13. The craft holes connected to the frame and frame connection of the aluminum alloy door shall not be set on the insulation material;

The craft holes installed by the hardware should not be set on the insulation material.

14. When the doors and windows have sound insulation design requirements: the opening of the seam between the frame and the fan should be used with good durability and elastic sealing materials, such as the three yuan ethylem elastic sealing tape. The sealing wool strip should not be used.

3. Profile material requirements, corner assembly process requirements

1. Use high-quality sawing equipment to ensure profile processing accuracy. Clean the profile sections and corner codes to be as free of oil as possible.

2. Keep the inner cavity of the connecting part between the profile and the corner code, the surface of the corner code and the section of the profile at a certain humidity (it is recommended to wipe the parts that need to be glued with a wet rag for backup) Use).

3. ​​Apply an appropriate amount of \”corner glue\” to the effective contact surface between the corner code and the profile and the connection section of the profile, and check whether the reinforcing sheet is installed.

4. Insert the corner code, align it along the corner seam, and use the \”corner assembly machine\” on this corner to complete the positioning and fixing process

5. . After the four corners of the door and window are positioned and fixed, the size and flatness should be confirmed and adjusted within 30 minutes.

6. After cornering the casement window frame, use corner glue to inject glue under pressure until the corner hole overflows with glue (see page 121).

7. After all is completed, wipe away the residual glue that overflows from the corner joints as soon as possible before the corner glue is completely cured.

8. The finished doors and windows should be stacked and transported to avoid excessive uneven stress and violent collisions. Since the corner glue generally reaches its maximum strength in about 7 days, it is recommended to try to do so after a week. Start project installation

r>

Chapter 4 Door, Window Riring Project

Section 4 plastic steel doors and windows

1. Material standard

2. Construction technology and quality requirements

Three, acceptance standards

1. Material standard

Profile: material brand, cross-section size, profile wall thick It should meet the design requirements of the group designated brand, contract and design; Compliance with contracts and design requirements;

The sealing strips used for casement doors and windows should comply with the national standard \”Sealing Strips for Building Doors, Windows and Curtain Walls\” GB/T24498, and the rebound recovery (Dr) of the sealing strips between frames and sash should reach level 5 or above. , Thermal aging rebound recovery (Da) reaches level 4 or above.

Sealing tops for plastic doors and windows should be of the flat-sheet type with siliconized top fibers;

Reinforced tops for plastic doors and windows The section steel should be determined through calculation, and the minimum measured wall thickness of the reinforced steel section for plastic windows should not be less than 1.5mm, and the minimum measured wall thickness of the reinforced steel section for plastic doors should not be less than 2mm;

The minimum measured wall thickness of the visible surface of the main window profile shall not be less than 2.5mm, and the minimum measured wall thickness of the non-visible surface profile shall not be less than 2.0mm. The artificial aging time of profiles for exterior doors and windows should reach 6000h, and the aging time of profiles for interior doors and windows should reach 4000h

Hardware: brand and configuration comply with the group\’s designated brand, contract and design requirements; friction The hinge should be made of 304 stainless steel slider; the wind brace should be made of 304 material and have fibers and adjustment devices;

Glass: glass brand, original glass thickness, air spacer thickness, and coating should comply with contract and design requirements;

Use three glass and two cavities For insulating glass, the thickness of the glass on both sides should not be less than 4mm, the thickness difference should not exceed 3mm, and the thickness of the air spacer should not be less than 9mm; when using low-emissivity coated glass, the coating surface should be located in the air cavity of the insulating glass;

All screws and bolts used for on-site installation should be made of stainless steel. Galvanized screws are strictly prohibited; reinforced steel fastening screws Machine-made self-drilling and self-tapping screws should be used instead of blind rivets. Fasteners connecting hardware and reinforced steel or plastic profiles should use cross-recessed purple diamond self-tapping screws. See \”Technical Regulations for the Design and Assembly of Plastic Doors and Windows\”.

1. Material standards

The middle layer material of laminated glass should be polyvinyl butyral resin; The spacer strips have been continuously bent

, and the width of the spacer strips should not be less than 9mm (see \”Technical Regulations for the Design and Assembly of Plastic Doors and Windows\”).

Attached frame and expansion bolts: Steel with a wall thickness of not less than 1.5mm should be used, and the material should be carbon structural steel or low alloy structural steel; both the inner and outer surfaces of the attached frame should be Anti-rust treatment (see \”Plastic doors and windows design and assembly technical procedures \”);

Fixed swelling should meet the design requirements, and it is strictly forbidden to rust;

Two , Construction process and quality requirements

Installation process:

Cave mouth review → frame installation (dry method) → frame attachment frame Close (dry method) → main frame installation → close (wet method) → install fixed glass and glue seal → install and adjust the doors and windows and hardware → the door and windows are sealing around the doorsteen -Track = \”140\”> Quality requirements:

1. Enhanced steel-type fasteners should be used to drill self-attack screws, and pull rivets should not be used;

2, 7 and 7 floors open windows open windows, and window glass or glass bottom edge of the window with an area of ​​more than 500mm should be tested glass, steel The glass should have a CCC logo; tensile glass should avoid incomplete crafts and wave patterns;

3. The door and window frame and the structure are firmly connected, and the blocks between the frame and the entrance of the hole are blocked. There is no translucent, the box is full, straight and beautiful, and wide and wide;

4. The doors and windows should have sufficient strength to avoid deformation and bending of the post-installation profiles and bending. (If the three -glass plastic steel doors are not recommended to open the door). During the bidding stage, urban companies must request each bidding unit to verify the rigidity of the profile. When the doors and windows are too large, there must be enhanced measures for the lining of the profile; It is strictly forbidden to occur in light transparency. The size of the seams between the fans and the frame of the door of the door should be unified, and the size of the horizontal and vertical seams should be inconsistent.

6. After the new 60 ~ 75 series doorstep is closed, the inner and outer surface of the fan and frame profile shall be flat (the fan sealing strip is built-in), the fan material shall be material, and the fan material shall The width of the box with the frame is ≥5mm;

7. The door and window profiles are seamlessly seamless, and the surface of the sewing or the surface of the buckle is not high. All doors and windows, all doors and windows The glass buckle must not be set outdoors;

8. The doors and windows handle handlebars and the colors of the form and the profile color are coordinated. On the strip;

9. The outer suspension window should be set up to ensure that the opening distance is not greater than 0.30m (the opening height distance is large.Except for 1.20M);

10. The flat window with a height of more than 900 should be used at least 2 points. See the \”Technical Regulations for Plastic Doors and Window Design and assembly\”. The flat windows with a club must be set up. Inner open windows are installed and promoted as needed. Pushing doors and windows should be installed with anti-collision blocks;

11. The height is greater than 1200mmm, the window and the window fan should be installed with three hinges or hinges, or the middle locking point is installed, and the middle is installed, and the middle is installed, and the middle locking point should be installed. The hinge or hinge should be installed in the middle of the fan. For details, please refer to the \”Plastic Doors and Window Design and assembly technical regulations\”.

12. The flat door fan should be installed with no less than three adjustable hinges. For details, please refer to the \”Plastic Doors and Window Design and assembly technical regulations\”.

13. Push door and window should be installed according to design requirements, buffer pads, anti-collision blocks, sealing bridges, anti-theft blocks, and anti-lifting devices. For details, please refer to \”Plastic doors and windows Design and assembly technical regulations.

14. All door and window types need to be set on the water leakage holes, and the installation and configuration of the leakage hole cover is complete.

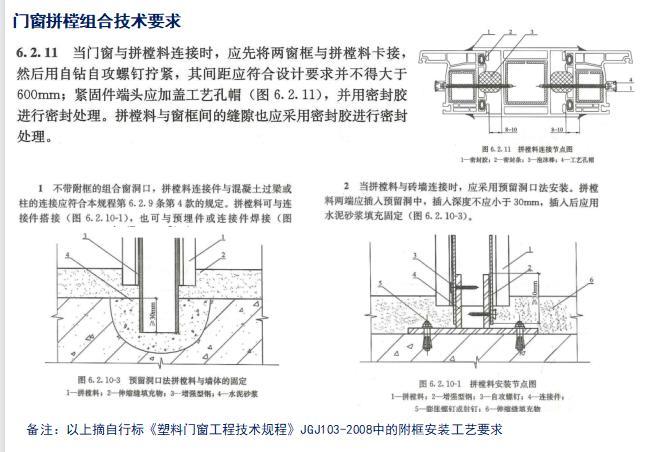

15. All doors and windows craft holes should be installed with no omissions; the expansion bolts of the doors and windows and the installation holes of the combined splicing bolt shall be installed.

16. The screws used in doors and windows must be made of stainless steel;

17. The surface of the sealing glue should be smooth, straight, full, no Fall off. The rubber seal or hair strip of the sliding doors and windows should be intact and no fall; Select the outer flat windows;

19. When the design of the exterior opening window is designed, it must be used to use safety glass, and it is strictly forbidden to use an external decorative layout assembly method;

and adopt installation measures to prevent the sneaker from falling.

20. When using pulling doors and windows, there should be a device and prevention measures to prevent disassembly from outdoor;

21 The installation position of the anti-collision glue should be based on the opening area of ​​the push-pull fan (see page)
