Reprint–Oma (with screen) electric door debugging

Source: Thermal Control Circle

1. The operation panel functions are as follows:

※Oma Administrator , the default password is:0000

2. Debugging method:

1. The meaning and operation method of some codes on the screen:

2.1. S code meaning:

S0001: Use % of stroke to indicate valve position

S0002: Indicate actuator torque

S0003 : Indicates valid operation commands, such as: running in the closing or opening direction

S0005: The number of warnings that occurred

S0006: Display \”remote\” Not ready indication

S0007: A fault occurs, the display shows

S0008: Indicates an indication beyond the specified range

S0009: Indicates function check instructions

S0010: Indicates maintenance instructions

S0011: Indicates the cause of the fault

2.2. M code represents the main menu. The debugging method is as follows:

2.2.1 Switch valve mode setting:

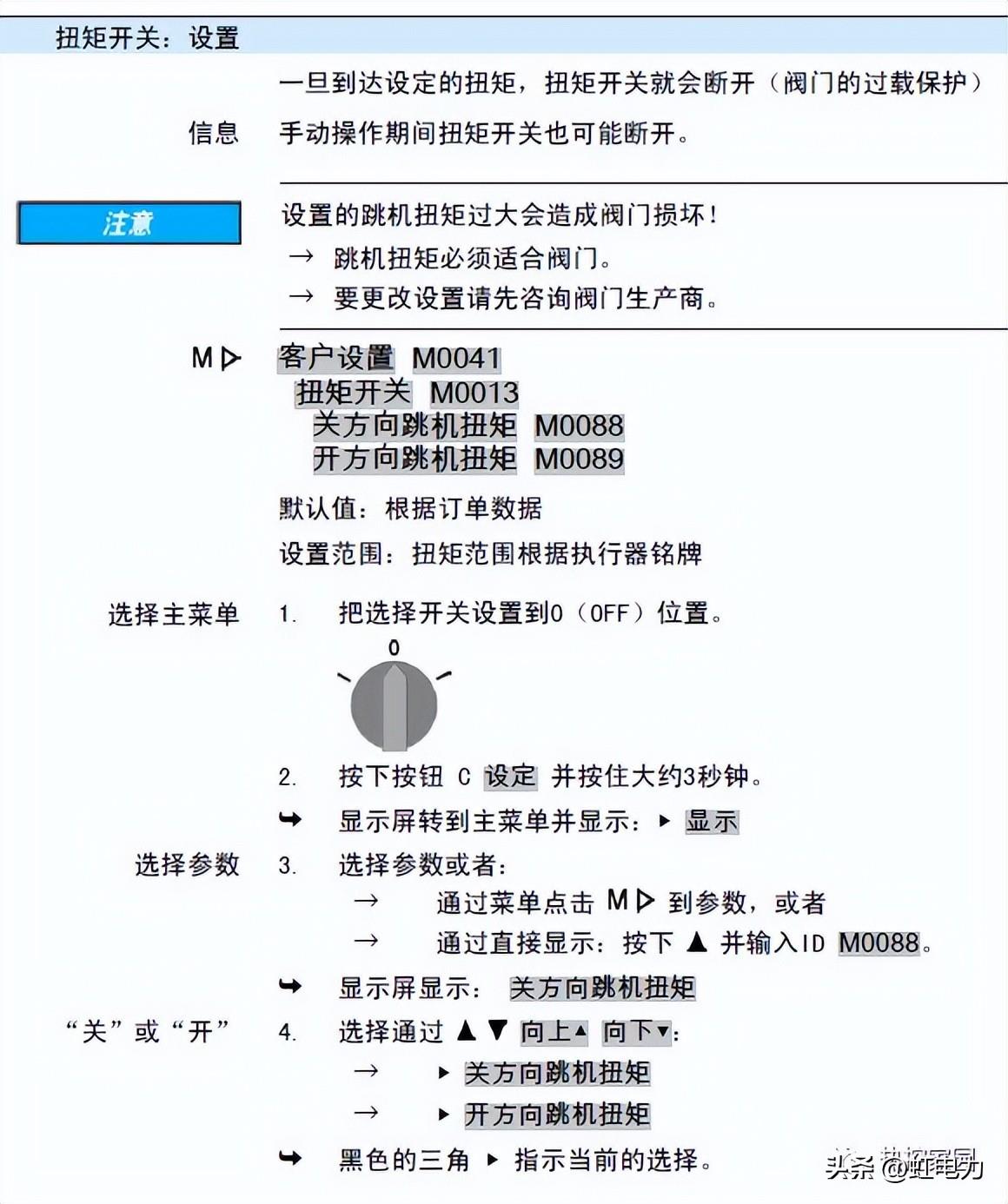

2.2.2 Torque setting:

2.2.3 Valve switch position setting:

2.2.3 language change:

3. Alarm, fault and processing

1. Instructions:

2. Alarm and fault:
